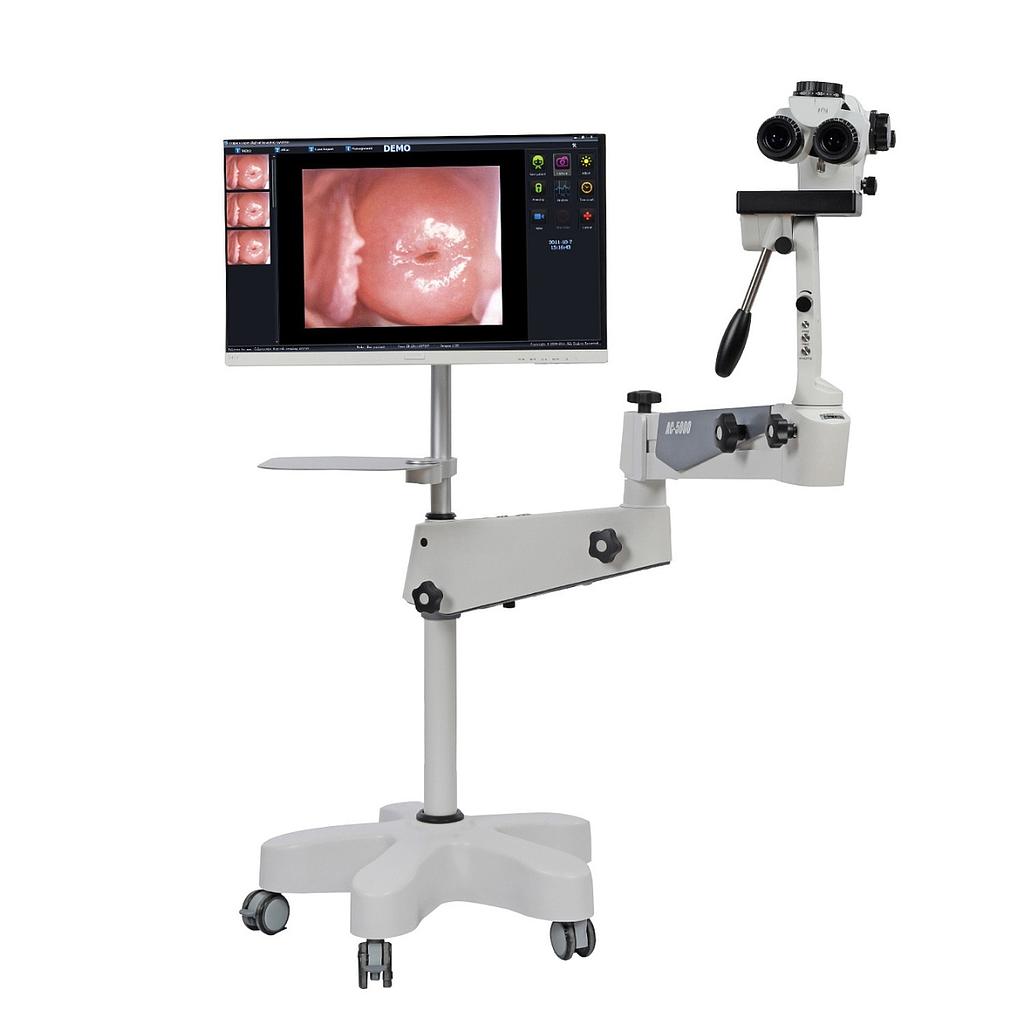

Video-Colposcope ULTRA 4K on articulated arm with tilting binoculars 0-180°
The ULTRA 4K video colposcope offers a premium gynecological examination solution combining apochromatic optics, integrated 4K camera, and optimal ergonomic comfort. Thanks to its variable objective, 4-filter LED lighting and articulated arm with internal wiring, it guarantees precise, smooth and constraint-free examinations. Ideal for demanding practices and hospital environments.
Référence |
COLPO.ULTRA4K |
Associated categories: Specialized diagnostic equipment > Colposcopes > Video-Colposcope ULTRA 4K on articulated arm with tilting binoculars 0-180°
Features
- Video-colposcope on mobile stand with articulated arm and wheeled base
- 5-level optical magnification: 2.6X / 3.9X / 6.4X / 10.3X / 16.1X
- Variable objective F250-430 mm with extra-wide focusing range (180 mm)
- Binocular head tilting from 0 to 180° with ±10° horizontal adjustment and one-hand interpupillary adjustment (50–75 mm)
- Eyepieces 12.5X / 18 mm with ±7D diopter adjustment
- High-quality apochromatic optical technology
- LED illumination ≥46,000 lux at 250 mm, color temperature 5700K, CRI ≥85%
- 4 light modes: natural white, anti-glare filter, blue filter, green filter
- Integrated 4K camera with SONY CMOS 1/2" sensor, high sensitivity and low noise
- HDMI and WiFi transmission – 1080p resolution at 60 FPS – JPG (image) and MP4 (video) formats
- Storage on external USB key (64 GB)
- Complete professional software OPTIONAL with 4K HDMI capture card, driver, USB dongle, HDMI cable
- Ergonomic design with cables integrated into the arm for improved mobility and safety
- 27'' 4K screen support compatible as optional accessory
- Power supply: AC100-240V / DC12V 3A – consumption: 25 to 60VA
Often bought together
Exceptional 4K technology, optimized ergonomics and uncompromised visualization at the service of modern colposcopy.
| Technical Sheet – Ultra 4K Video-Colposcope AC-5000 | |
|---|---|
| Magnification | 5 manual levels: 2.6X / 3.9X / 6.4X / 10.3X / 16.1X (at 250 mm) |
| Objective | Variable F250-430 mm – extra-wide focusing range of 180 mm – side wheel adjustment |
| Binocular head | Tilting from 0° to 180°, ±10° horizontal rotation, one-hand interpupillary adjustment (50–75 mm) |
| Eyepieces | 12.5X / 18 mm – ±7D diopter adjustment |
| Optical technology | High-end apochromatic |
| Illumination | LED ≥46,000 lux at 250 mm – 4 filters: white light, anti-glare, blue, green – CRI ≥85%, 5700K |
| LED lifespan | ≥50,000 hours |
| Camera | Integrated 4K – SONY CMOS 1/2'' sensor – low noise, high sensitivity |
| Resolution / Format | 1080p at 60 FPS – JPG (image) / MP4 (video) formats |
| Transmission | WiFi and HDMI |
| Storage | External 64 GB USB key |
| Software OPTIONAL | 4K HDMI capture card, software, driver, USB dongle, HDMI cable |
| PC Compatibility | Windows system |
| Power supply | AC100-240V / 50-60Hz – Output: DC12V / 3A – consumption: 25–60VA |
| Support / Mobility | Mobile stand with 5 wheels – articulated arm with internal cables |
| Screen | Compatible with 27'' 4K screen (optional) |
Frequently asked questions
What is the advantage of the variable F250-430 mm objective?
The variable F250-430 mm objective allows precise focal distance adjustment, offering great flexibility to adapt to different patient morphologies and specific clinical conditions. Thanks to its wide 180 mm focusing range, the practitioner can obtain a sharp image without repositioning the equipment, improving the efficiency of the gynecological examination. This feature is particularly useful in colposcopy, where detailed observation of the cervix is crucial for cervical lesion detection and diagnosis.
What are the ergonomic features of the articulated arm?
The articulated arm of the AC-5000 video-colposcope is designed to provide optimal handling during examinations. It integrates cables internally to limit clutter and ensure greater safety in the medical office. This ergonomic design enables smooth and precise movements, with stable optical positioning without effort. The practitioner enjoys greater freedom of movement and can easily adjust the height and observation angle, significantly improving comfort during long colposcopic examination sessions.
Can this colposcope be connected to an external screen?
Yes, the AC-5000 video-colposcope is fully compatible with connection to an external screen via its dual HDMI and WiFi transmission. It can be connected to a 27'' 4K monitor (optional), which allows real-time display of high-definition images for immediate and precise analysis. This function is ideal for shared examinations with colleagues, student training or communication with patients. Additionally, the integrated 4K camera with SONY CMOS sensor ensures exceptional image quality with 1080p videos at 60 FPS, enriching the clinical experience.
