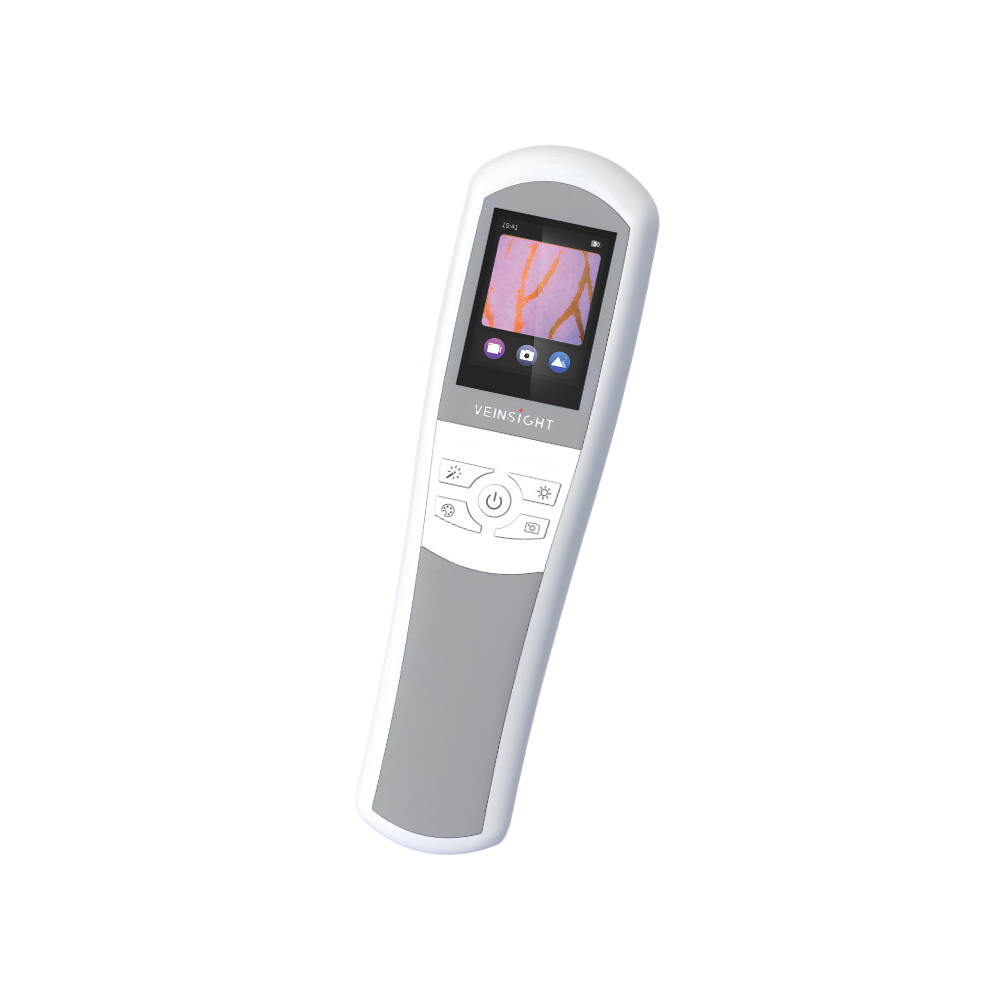

Vein detection device with screen – Veinsight VS800
Référence |
VS800 |
Features
- Portable near-infrared vein visualizer: maps subcutaneous veins and projects their image in real time directly onto the patient's skin.
- Dual simultaneous display: visualization of vein mapping both on the integrated screen and by projection onto the skin.
- Capacitive touchscreen: enables navigation through menus and quick modification of visualization parameters.
- Near-infrared imaging at approximately 850 nm: technology used to detect and map subcutaneous vein structures.
- Artificial intelligence image processing: filters hair and surface interference to improve vein mapping readability.
- Depth mode in pseudo-colors: facilitates visual differentiation of vein depth.
- Center line guide: displays the center of the vein image to assist in localization.
- Adjustable projection color: continuous customization of display color according to visualization needs.
- Adjustable brightness: continuous adjustment of projection intensity.
- Three projection sizes: adaptation of the projected area to the clinical situation.
- Inverted mode: option to invert the vein mapping display.
- Enhance and Fine modes: complementary modes designed to adjust vein image rendering.
- Video recording: allows recording of vein visualization procedures for clinical review, training, or documentation.
- Image storage: enables storage and export of vein mapping images.
- USB export: integrated USB port for transfer of recorded images and videos.
- Distance sensor: provides an indication to assist in device positioning.
- Automatic wake and sleep: automated management of operating state.
- Customizable sleep timer: configurable sleep delay.
- Low battery alarm: alerts the user when charge level becomes insufficient.
- Battery life of approximately 5 hours: rechargeable battery operation for mobile use.
- Charging on dock: the device can be recharged when placed on its compatible dock.
- Compact and lightweight design: dimensions of 200 × 55 × 53 mm with a weight of 350 g, facilitating handheld use.
- Multiple clinical applications: suitable notably for pediatrics, oncology, geriatrics, emergency medicine, vascular surgery, radiology, and outpatient care.
- Optional stands available: fixed stand reference VS800-SP2 and mobile stand reference VS800-SP1.
- Optional Vein Enhancer accessory: complementary accessory available for the system.
"Vein mapping visible directly where it counts: on the patient's skin."
| Technical specifications | Details |
|---|---|
| Product | Portable near-infrared vein visualizer |
| Model | VS800 |
| Imaging technology | Near-infrared light |
| Wavelength | Approximately 850 nm |
| Display principle | Mapping of subcutaneous veins with real-time projection directly onto the patient's skin |
| Dual display | Simultaneous display of vein mapping on the integrated screen and on skin by projection |
| Interface | Capacitive touchscreen |
| Image processing | Artificial intelligence processing to filter hair and surface interference |
| Depth visualization | Depth mode with pseudo-color display |
| Visualization guide | Center line guide of the vein image |
| Color adjustment | Continuous customization of projection color |
| Brightness adjustment | Continuous customization of projection brightness |
| Projection sizes | 3 options |
| Display modes | Inverted mode, Enhance mode, and Fine mode |
| Recording | Video recording of vein visualization procedures |
| Storage | Storage of vein mapping images |
| Data export | Export of images and videos |
| Connectivity | USB port for data transfer |
| Distance sensor | Yes, with positioning indication |
| Sleep management | Automatic wake-up, automatic sleep, and customizable sleep timer |
| Battery alert | Low battery alarm |
| Battery life | Approximately 5 hours per charge |
| Charging | Charging possible on dock |
| Weight | 350 g |
| Dimensions | 200 × 55 × 53 mm |
| Mentioned fields of use | Pediatrics, oncology, geriatrics, emergency medicine, vascular surgery, radiology, and outpatient care |
| Optional fixed stand | Reference VS800-SP2 |
| Optional mobile stand | Reference VS800-SP1 |
| Optional accessory | Vein Enhancer |
What is the VS800 vein visualizer used for?
The VS800 is used to map subcutaneous veins and project their image in real time directly onto the patient's skin to facilitate their localization for vascular access procedures.
How does the VS800 vein visualizer work?
The VS800 uses near-infrared light at approximately 850 nm to detect subcutaneous vein structures. The resulting mapping is displayed on the device screen and simultaneously projected onto the skin.
Does the VS800 have a touchscreen?
Yes. The VS800 integrates a capacitive touchscreen allowing navigation through menus and modification of device parameters.
Does the VS800 allow visualization of vein depth?
The VS800 has a depth mode using pseudo-color display to help visually differentiate the depth of detected veins.
How does the VS800 reduce interference from hair?
The VS800 uses artificial intelligence image processing designed to filter hair and surface interference to obtain clearer vein mapping.
Can images and videos be recorded with the VS800?
Yes. The VS800 allows storage of images and video recording of vein visualization procedures. Data can be exported via the USB port.
What is the battery life of the VS800 vein visualizer?
The VS800 offers an advertised battery life of approximately five hours per charge. It also has a low battery alarm and can be charged on its dock.
What is the weight and what are the dimensions of the VS800?
The VS800 weighs 350 g and measures 200 × 55 × 53 mm. Its compact design is intended for portable use in clinical settings.
In which medical departments can the VS800 be used?
Mentioned fields of use include notably pediatrics, oncology, geriatrics, emergency medicine, vascular surgery, radiology, and outpatient care.
What stands are available for the VS800?
The VS800 can be associated with a fixed stand reference VS800-SP2 or a mobile stand reference VS800-SP1. A Vein Enhancer accessory is also offered as an option.
