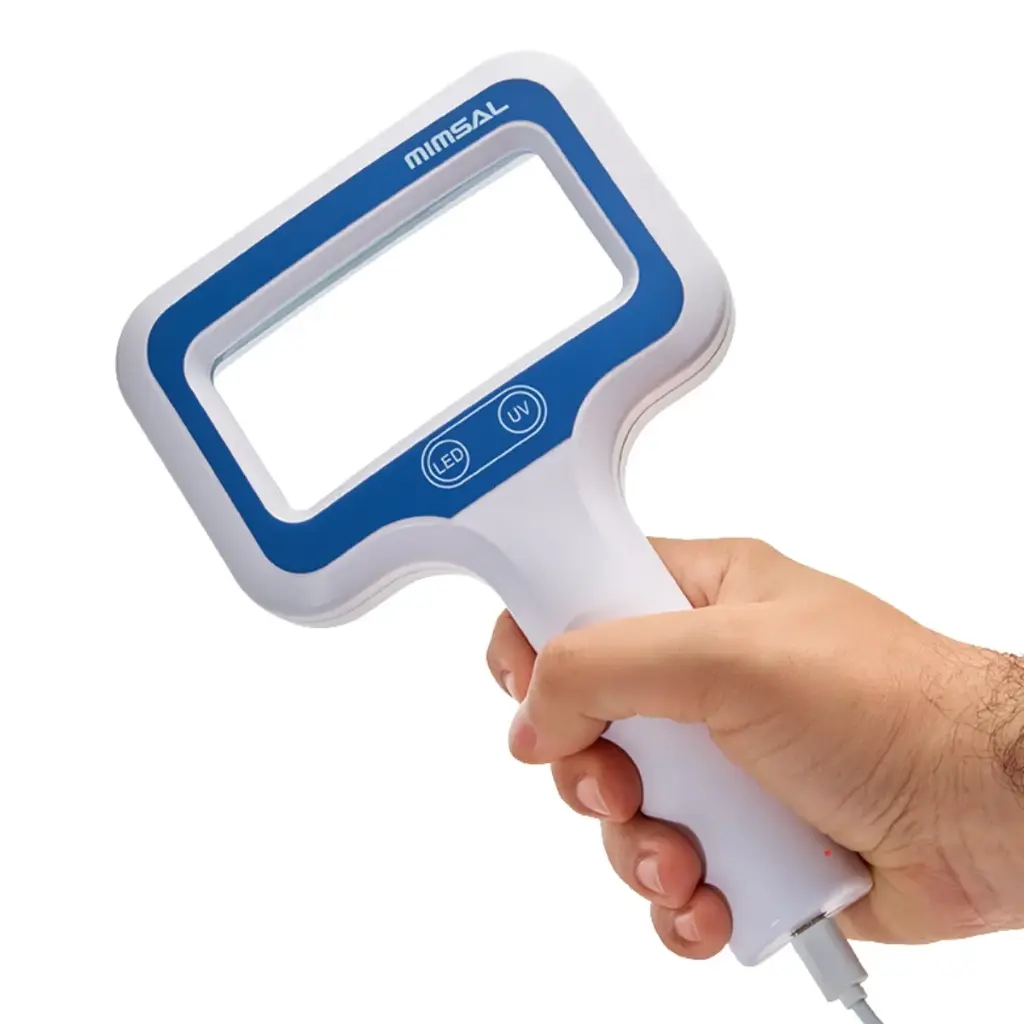

Vista Lite hand-held Wood's lamp - LED UV & White
Référence |
E051LT |
Features
- Portable LED magnifying lamp with dual lighting, designed for precise examinations and observations.
- Two lighting modes: UV-A light at 365 nm for Wood's lamp examinations and white light at 6,500 K for detailed observation.
- High-quality glass magnifying lens offering 5 diopters magnification (2.25×).
- Optical surface of 93 × 43 mm allowing magnified observation of the examined area.
- UV-A lighting provided by 26 LEDs, with battery life of up to 2 hours.
- White lighting provided by 18 LEDs, with two intensity levels to adapt brightness to examination needs.
- Maximum light intensity of 3,000 lux at 20 cm in white mode.
- Color rendering performance greater than 80%, ensuring faithful color observation under white lighting.
- Battery life of up to 6 hours in white mode thanks to rechargeable lithium-ion battery.
- Possible use while charging to continue examinations without charging interruption.
- Micro-Touch controls integrated into the lamp head for easy lighting mode selection.
- Compact and ergonomic design facilitating handling and portability.
- Nominal LED power of 8 W and direct current power supply of 5 V.
- White finish.
Two lighting modes, magnified vision and complete freedom to examine with precision.
Technical characteristics
| Technical characteristics | Details |
|---|---|
| Brand | MIMSAL |
| Model | Vista Lite |
| Product type | Portable LED magnifying lamp with dual lighting |
| Use | Wood's lamp examinations, magnified observations and precision examinations |
| Light technology | Light-emitting diodes (LED) |
| Lighting modes | Ultraviolet A (UV-A) and white light |
| Nominal LED power | 8 watts |
| Power supply | 5 volts direct current |
| Color | White |
| Type of ultraviolet lighting | UV-A |
| UV-A wavelength | 365 nanometers |
| Number of UV-A LEDs | 26 |
| Battery life in UV-A mode | Up to 2 hours |
| Number of white LEDs | 18 |
| Color temperature of white light | 6,500 kelvins |
| Intensity levels of white lighting | 2 |
| Power of white lighting | 2 to 4 watts |
| Maximum illuminance at 20 centimeters | 3,000 lux in white mode |
| Color rendering performance | Greater than 80% |
| Battery life in white mode | Up to 6 hours |
| Lens type | Glass magnifying lens |
| Lens dimensions | 93 × 43 millimeters |
| Optical power | 5 diopters |
| Magnification factor | 2,25× |
| Battery type | Rechargeable lithium-ion |
| Use while charging | Yes |
| Controls | Micro-Touch buttons integrated into the lamp head |
| Ergonomics | Compact and portable design |
Frequently asked questions about the MIMSAL Vista Lite magnifying lamp
What is the MIMSAL Vista Lite LED magnifying lamp used for?
The Vista Lite is a portable magnifying lamp designed for precise examinations and observations. It combines a 2.25× magnifying lens with two lighting modes: white light for detailed observation and UV-A light at 365 nanometers suitable for Wood's lamp examinations.
Can the MIMSAL Vista Lite lamp be used as a Wood's lamp?
Yes. The Vista Lite has an ultraviolet A (UV-A) mode equipped with 26 LEDs emitting at a wavelength of 365 nanometers. This lighting is suitable for Wood's lamp examinations.
What is the magnification of the Vista Lite lens?
The lamp has a glass lens of 5 diopters, corresponding to a magnification of 2.25×. Its dimensions are 93 × 43 millimeters.
What is the difference between UV-A lighting and white lighting on the Vista Lite?
UV-A mode uses 26 LEDs at 365 nanometers and is suitable for Wood's lamp examinations. White mode is based on 18 LEDs at 6,500 kelvins, with two intensity levels allowing brightness adjustment for precision observations.
What is the lighting power of the Vista Lite magnifying lamp?
The Vista Lite has a nominal LED power of 8 watts. In white mode, power ranges from 2 to 4 watts depending on the selected intensity level. Maximum illuminance reaches 3,000 lux at a distance of 20 centimeters.
What is the battery life of the rechargeable MIMSAL Vista Lite magnifying lamp?
The rechargeable lithium-ion battery offers up to 6 hours of battery life in white light mode and up to 2 hours in ultraviolet A (UV-A) mode. Battery life therefore depends on the lighting mode used.
Can the Vista Lite lamp be used while charging?
Yes. The Vista Lite can operate while charging its lithium-ion battery, allowing you to continue observations without waiting for the charging cycle to complete.
How do you change the lighting mode of the MIMSAL Vista Lite lamp?
The lamp is equipped with Micro-Touch buttons integrated directly into its head. These controls allow easy selection of the lighting mode suitable for the examination. White mode also offers two brightness intensity levels.
Is the Vista Lite magnifying lamp easy to transport?
Yes. The Vista Lite has a compact and ergonomic design. Its rechargeable lithium-ion battery allows it to be used without a permanent power cord connection, facilitating portability and observations in different environments.
What is the color temperature of the white lighting on the Vista Lite?
The white lighting of the Vista Lite has a color temperature of 6,500 kelvins. It is provided by 18 LEDs, has color rendering performance greater than 80%, and offers two intensity levels to adjust brightness during examinations.
