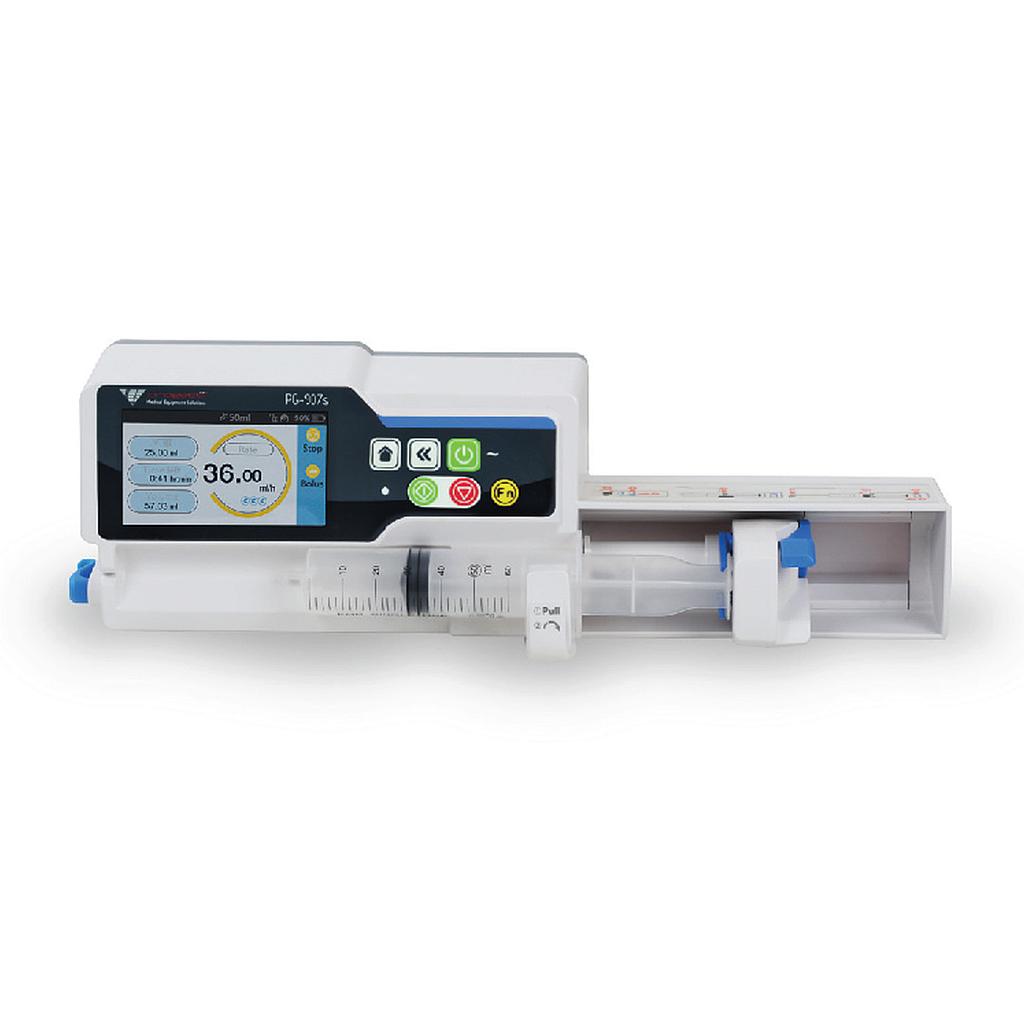

Electronic hospital syringe pump PG-907s
Discover the PG907 electronic syringe pump, designed to optimize infusion procedures with exceptional precision. This device integrates a 4.3-inch LCD touchscreen, a user-friendly interface and advanced medication error management technology, ensuring maximum safety and efficiency in all hospital environments.
Référence |
PG907S |
Associated categories: Injection and infusion equipment > Medical infusion pumps > Electronic hospital syringe pump PG-907s
Features
- Electronic syringe pump: Touch interface, 4.3-inch high-brightness LCD screen.
- Extended compatibility: Adaptable to syringes from 2 to 60 ml, automatic size identification.
- Enhanced safety: Compliant with IEC 60601 standard with dual CPU processor for dual safety.
- Advanced features: Multiple infusion modes, precise micro-adjustment, password protection and screen lock.
- Cutting-edge technology: Integrated DERS system for medication error reduction, Wi-Fi remote control option.
- Electrical protection: Class I protection type, CF defibrillation-proof protection level.
- Environmental performance: Water and dust resistant, IP34 protection rating.
- Network capabilities: Wi-Fi connectivity option and integration with centralized infusion systems.
- Dimensions and power supply: Compact and lightweight with AC power and lithium battery options for maximum mobility.
"With the PG907 syringe pump, every drop is precisely controlled, offering unmatched peace of mind to healthcare professionals."
| Technical specification | Details |
|---|---|
| Display type | 4.3-inch touchscreen LCD display |
| Compliance | IEC 60601, high safety with dual CPU |
| Syringe compatibility | Automatically for sizes 2, 3, 5, 10, 20, 30, 50/60 ml |
| Anti-backflow function | Yes, prevents reflux |
| Medication error reduction system (DERS) | Available |
| Network and remote control | Wi-Fi available and remote control system (optional) |
| Electrical protection type | Class I |
| Electrical protection level | CF type defibrillation-proof |
| Fluid ingress protection | IP34 |
| Operating principle | Continuous endless screw operation by stepper motor |
| Classification | Syringe pump with open system using universal syringe markings |
| Special functions | Dynamic pressure, night mode, standby, screen lock, password protection, rate adjustment during operation, automatic calculation, memory of last infusion parameters |
| Infusion modes | 7 modes available (ml/h, body weight, TIVA, loading dose, progressive increase/decrease, sequence and relay mode) |
| Micro infusion rate | From 100 ml/h to 1200 ml/h, programmable |
| Infusion rate range | 0.01 – 1500 ml/h depending on syringe size, with minimum increment of 0.01 ml/h |
| Syringe compatibility | 2ml, 3ml, 5ml, 10ml, 20ml, 30ml, 50/60ml |
| System accuracy | ≥1ml/h, ±2% |
| Dimensions | 394(W)*90(D)*123(H) mm |
| Weight | 1.7 kg |
| Power supply | AC 100-240V 50/60Hz, DC 15V (lithium battery) |
| Battery specifications | Model DC 203, 11.1V 2600mAh, Charging time 5h, Battery life ≥12h |
| Alarms | Alarm information for end of VTBI, syringe nearly empty, high pressure, battery nearly empty, no battery, syringe check |
| Operating environment | Temperature 5-40°C, humidity 20-90%, atmospheric pressure non-condensing 86-106kPa |
| Transport and storage | Temperature -20 to 60°C, humidity 10-95%, atmospheric pressure non-condensing 50-106kPa |
What are the safety specifications of the PG907 syringe pump?
The PG907 syringe pump is compliant with IEC 60601 standard, offering high safety through the use of dual CPU processors. It is classified as a CF-type defibrillation-proof device, making it safe for use in critical environments. Furthermore, it benefits from fluid ingress protection, rated IP34, ensuring its reliability in various hospital operating conditions.
Is the PG907 compatible with all syringe sizes?
Yes, the PG907 syringe pump is compatible with a wide range of syringe sizes, from 2 ml to 60 ml. It features automatic syringe size identification, which facilitates adjustments and ensures optimal precision during infusions.
What advanced functions does the PG907 offer to improve infusion treatment management?
The PG907 integrates several advanced functions such as medication error reduction system (DERS), varied infusion modes, and Wi-Fi remote control options. It also offers additional safety features such as screen lock, password protection, and programmable micro-flow settings, making it particularly suitable for modern hospital environments.
