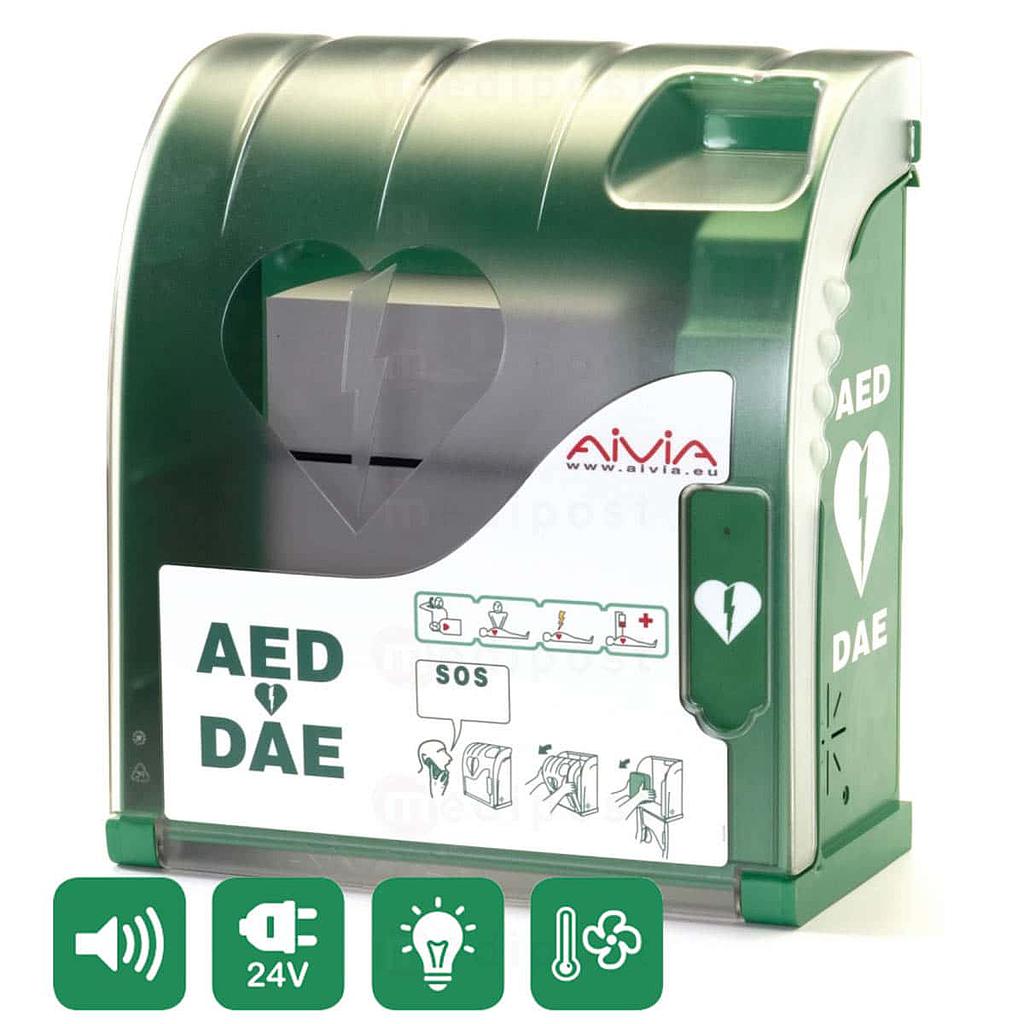

Aivia 200 wall cabinet indoor/outdoor for AED, with alarm+heating
Discover the Aivia 200 wall-mounted cabinet, an innovative solution for storing and protecting your AED defibrillator, suitable for both indoor and outdoor use. Equipped with an alarm, heating and LED lighting, this cabinet ensures security and easy access to your vital equipment in all circumstances.
Référence |
X2A200XX101 |
Associated categories: First aid products > Defibrillators > Aivia 200 wall-mounted cabinet indoor/outdoor for AED, with alarm+heating
Features:
- Designed for any environment: Usable indoors and outdoors, ensuring optimal protection of the AED.
- Integrated alarm: Sound activation of 80 dB when opening, for increased safety.
- Automatic LED lighting: Day/night activation by light detection, guaranteeing perfect visibility.
- Heating and ventilation system: Maintains the AED in optimal conditions, regardless of climate variations.
- Robust materials: Polycarbonate cover and ABS support for maximum durability.
- Retention strap: Ensures proper positioning and safety of the AED.
- Clear signage: Instructions and explanatory pictograms on the front for intuitive use in emergency situations.
- Seal protection: Secured AED access with plastic seals, preventing unauthorized use.
Outdoor wall cabinet installation details:
For outdoor defibrillator installation, it is essential to provide a location sheltered from rain. A dedicated power supply
must be drawn from an electrical panel to bring 220V to the desired location for your Automated External
Defibrillator (AED).
"With the Aivia 200 wall-mounted cabinet, your defibrillator is always ready for use, secure and accessible, for rapid and effective intervention in case of emergency."
| Technical specifications | Details |
|---|---|
| Model | Aivia 200 |
| Usage | Indoor / Outdoor |
| Power supply | 24 V DC SELV (Safety Extra Low Voltage) |
| Alarm | Sound alarm when opening the cover (80 dB at 1 m) |
| Lighting | LED with automatic light detection (day/night) |
| Thermal system | Heating and ventilation |
| Materials | Polycarbonate cover, ABS support |
| Retention strap | For AED |
| Signage | Pictograms and instructions on front, AED labels on sides |
| AED protection | Secured access with plastic seals |
| Dimensions (H x W x D) | 423 x 388 x 201 mm |
| Weight | 3.5 kg |
| Mounting points | Ø 8.5 mm |
| Compliance | EN 55022, EN 55024, EN 60950-1, Directives 2004/108/EC and 2006/95/EC |
| Electrical consumption | Minimum: 55 mA, Maximum: 2400 mA |
| Protection rating | IP44 |
| Humidity rating | 95% without condensation |
Frequently asked questions
Is the Aivia 200 wall-mounted cabinet suitable for outdoor use?
Yes, the Aivia 200 wall-mounted cabinet is designed for both indoor and outdoor use. It is equipped with a heating and ventilation system to maintain the AED defibrillator in optimal conditions, and its IP44 protection rating makes it resistant to solid object intrusion and water splashes, ensuring the safety and functionality of the AED in various environments.
How does the Aivia 200 wall-mounted cabinet alarm work?
The Aivia 200 wall-mounted cabinet's sound alarm automatically triggers when the cover is opened, emitting a signal of 80 dB at 1 meter distance. This feature aims to alert those nearby in case of AED access, increasing responsiveness during an emergency while discouraging inappropriate use or vandalism.
What are the safety and visibility features of the Aivia 200 cabinet?
The Aivia 200 cabinet is equipped with several features ensuring AED safety and visibility. LED lighting with automatic light detection ensures visibility of the AED compartment day and night. Clear signage and explicit pictograms on the front face guide the user on the procedure to follow in case of use. Additionally, AED access is secured with plastic seals, preventing unauthorized access while allowing rapid intervention when needed.
